Rice Lake SURVIVOR® OTR Steel Deck

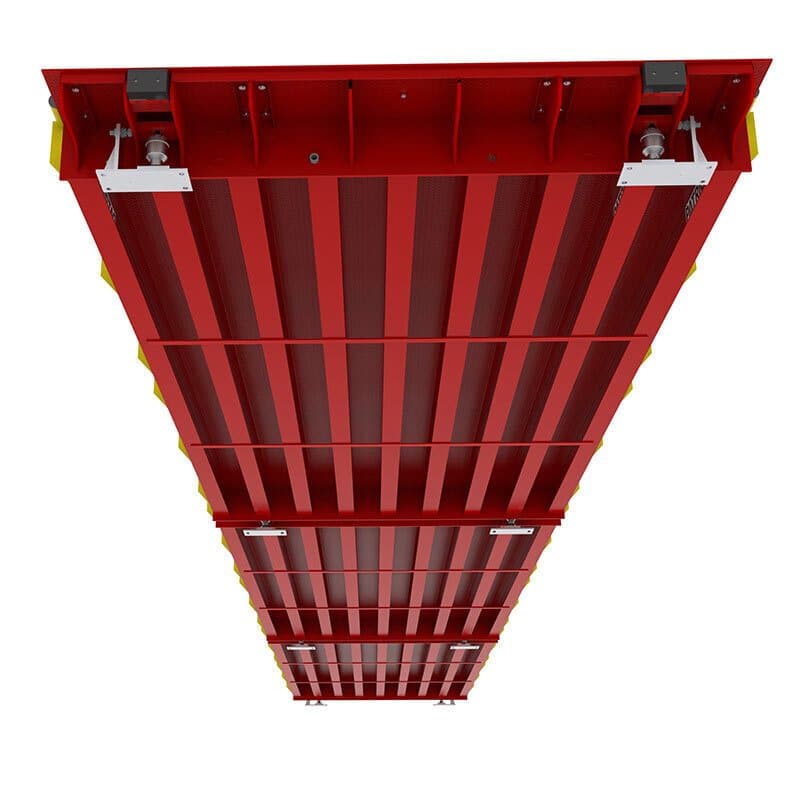

For above ground or pit installs, the SURVIVOR® OTR Steel Deck sets the standard for truck scale design and performance. Tightly spaced wide flange I-beams form the industry’s strongest weighbridge design, weighing as many as 250 trucks per day for 25 years without a trace of weighbridge fatigue.

Category:

Description

The OTR Steel Deck Truck Scale offers convenient top access to load cells, and a low profile to minimize steep approaches. Unique self-setting hinge-like connectors make for easy installation and future expansion.

Truck Scale Standard Features

  • Top access to load cells and junction box
  • 75,000 lb capacity load cells and G-Force™ mount assemblies
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP-certified, CC #02-003A2
  • 100,000 lb Concentrated Load Capacity (CLC)
  • 100,000 lb Dual Tandem Axle (DTA)
  • Up to 270,000 lb full scale capacity
  • Span deflection ratio (1:1100) for legal highway loads
  • Three standard widths: 10′, 11′, and 12′ (available up to 14′, NTEP-certified)
